ATI 1CA400-P1SC-I SBC Serpentine Accessory Drive w/P-1SC-1 Intercooled
ATI 1CA400-P1SC-I SBC Serpentine Accessory Drive w/P-1SC-1 Intercooled
Please remember that the prices on our site are the Procharger Minimum Advertised Prices
Call 260 672-2076
The ProCharger Accessory Drive Kit offers the sleek design style you expect from our brand, and a unique supercharger bracket design. Specifically designed for Chevy SBC engines, this kit includes everything you’ll need to fit the accessories you want. The design features our popular 8-rib or 10-rib pulleys that increase grip, reduce stretching and prevent belt slippage when compared to the traditional six rib designs.
Compact Design:
Our engineers created a sleek design that functions as good as it looks. The design features a 6-rib accessory belt drive that sits forward to allow an 8- or 10-rib supercharger drive belt to be placed behind it (now or later). Heavy-duty, spring-loaded tensioners are used on both belt kits for virtually maintenance-free operation, even after years of high load, high rpm use. To assist in different engine configurations, the supercharger outlet can face either direction.

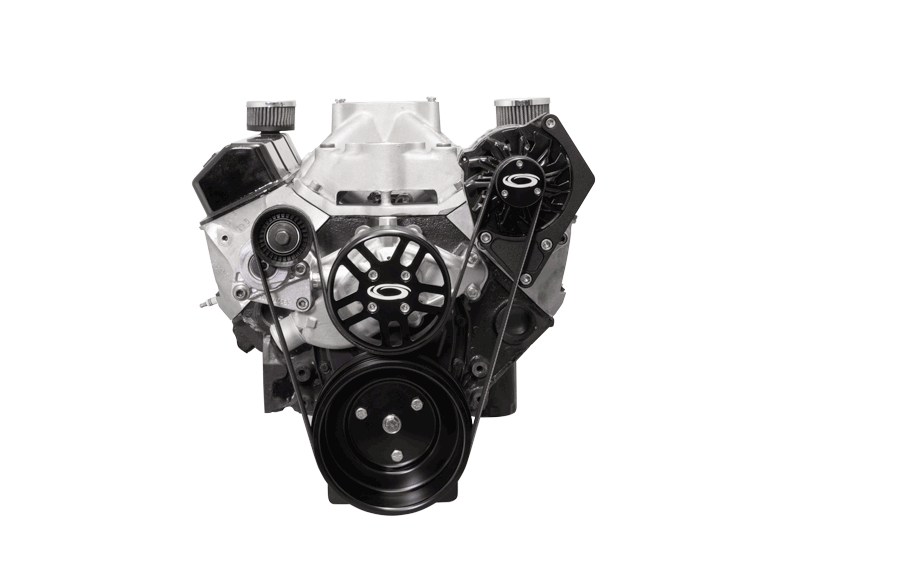

The SBC Accessory Drive Kit is flexible and expandable. Watch the image as an example of how you can add or subtract different components.
This kit includes:
– Supercharger P-1SC-1 Head Unit
– Supercharger Bracket, Tensioner, & Belt
– Water Pump Pulley
– Crank Pulley
– Alternator Bracket & Pulley
– Serpentine Belt & Tensioner
– Power Steering Bracket & Pulley
– A/C Bracket and Pulley Cover
– ProFlow Bypass Valve
- Comes with 2 core 550 hp intercooler and universal tubing kit
– Accessories sold separately
– Finish Options: Satin (standard), Black & Polished are options
Getting the configuration you need often begins with planning your underhood layout. Choose from one of many, versatile layouts to ensure it works for your setup:
- All accessories and supercharger
- All accessories, no supercharger
- With water pump and power steering, no A/C, no supercharger
- With water pump only, no power steering, no A/C, no supercharger
ACCESSORIES NEEDED
- Uses factory balancer or aftermarket factory replacement
- A/C Compressor = (Sanden SD7 6-rib)
Tuff Stuff Part # 4517NB6G (polished) or 4517GBLA (Black) or similar - Alternator = (CS-130 with 6.14 bolt spacing)
Powermaster Part # 67401 (polished) Part # 57401 (black)
Tuff Stuff Part # 7866DP6G (polished) or 7866E6G (Black) or similar - Power Steering pump = (GM Compact Type 2)
Tuff Stuff Part # 6170ALP (polished) or 6170ALB (black) or similar - Water Pump = (Reverse Rotation, Short, 1984-91 Corvette type)
Edelbrock Part # 8825 (polished) #8815 (Raw Aluminum)
Tuff Stuff Part # 1635ND (Polished) 1635N (Raw)
The Finer Details
Part Number: ATI 1CA400-P1SC-I
Manufacturer: ATI ProCharger (Accessible Technologies Inc)
Condition: New
