ATI 1LS300-PS Serpentine Accessory Drive with Crank Pulley, Alternator Bracket, Water Pump & Power Steering Bracket FINALLY...AN ACCESSORY DRIVE KIT BUILT FOR A SUPERCHARGER IN MIND
Click on More Information link below
The Finer Details
Part Number: ATI 1LS300-PS
Manufacturer: ATI ProCharger (Accessible Technologies Inc)
Condition: New
Send this to a friend
ATI 1LS300-PS Crank Pulley, Alt Brkt, Water Pump & P/S Brkt
- More Information

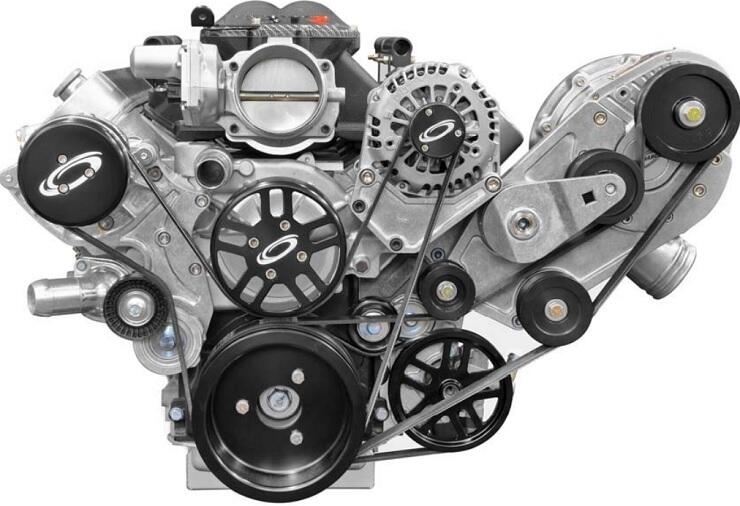

ATI 1LS300-PS Serpentine Accessory Drive with Crank Pulley, Alternator Bracket, Water Pump & Power Steering Bracket
An Accessory Drive Kit Built For A SuperCharger In Mind:
The ProCharger Accessory Drive Kit offers the sleek design style you expect from our brand, and a unique supercharger bracket design that offers you the convenience of adding the supercharger kit when you are ready. Specifically designed for Chevy LS engines, this kit includes everything you’ll need to fit the accessories you want. The design features our popular 8-rib or 10-rib pulleys that increase grip, reduce stretching and prevent belt slippage when compared to the traditional six rib designs.
This kit includes:
– Water pump
– Water pump bracket, pulley, and belt
– Crank Pulley and belt
– Alternator bracket, pulley, and belt– Power Steering bracket, pulley, and belt
Balancer required:
– 8 Rib – ATI #917345
– 10 Rib – ATI # 917347XKit Now, ProCharge Later:
Of course, we would love for you the buy them at the same time, but we understand. Project vehicles often mean you need to do these installs at different times. But with this accessory drive kit, you are able to save time and money by installing a kit that places the supercharger bracket closest to the crank outlet and allows you to add the supercharger bracket and kit when you are ready. It’s an easy swap, with no major disassembly required to add the supercharger bracket.
Compact Design:
Our engineers created a sleek design that functions as good as it looks. The design features a 6-rib accessory belt drive that sits forward to allow an 8- or 10-rib supercharger drive belt to be placed behind it (now or later). Heavy-duty, spring-loaded tensioners are used on both belt kits for virtually maintenance-free operation, even after years of high load, high rpm use. To assist in different engine configurations, the supercharger outlet can face either direction.
Dimensions:

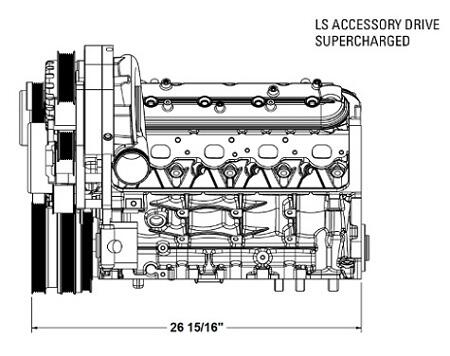

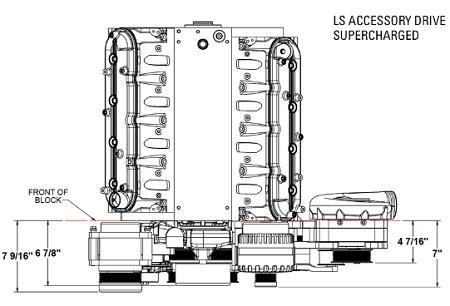

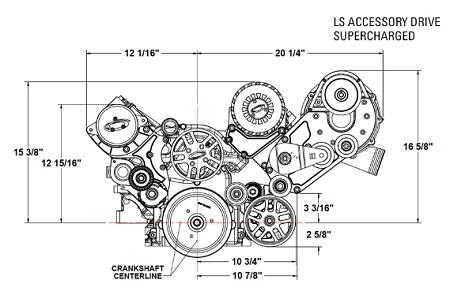

LS ACCESSORY DRIVE WITH SUPERCHARGER

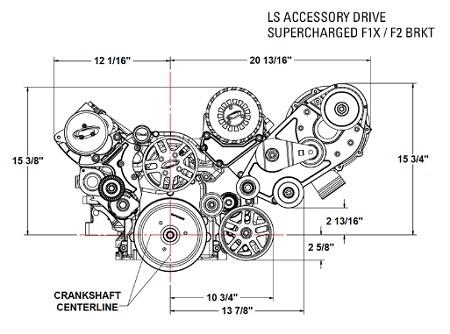

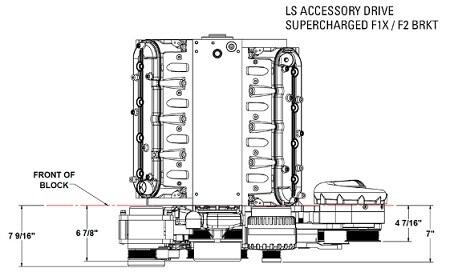

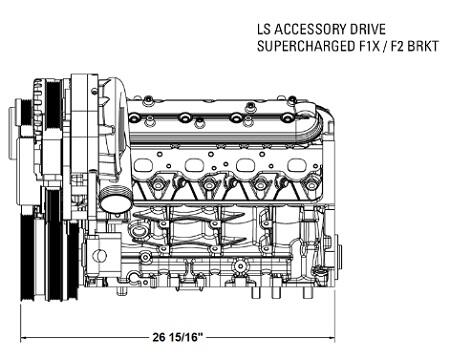

LS ACCESSORY DRIVE WITH F1X / F2 SUPERCHARGER BRACKET

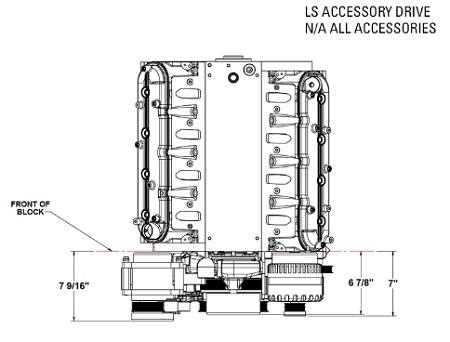

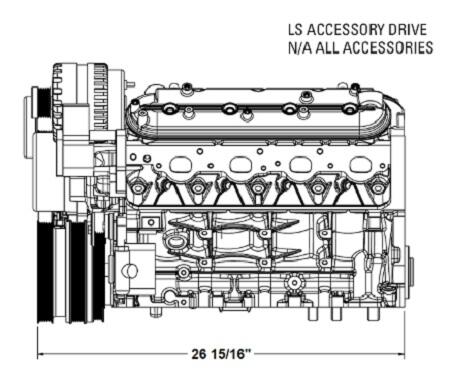

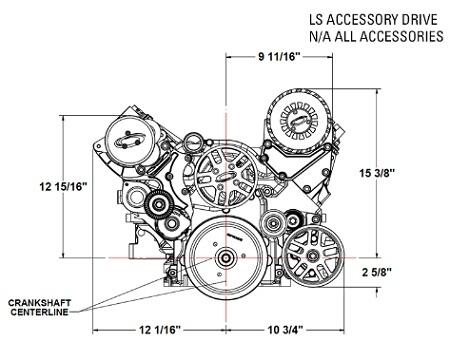

LS ACCESSORY DRIVE NATURALLY ASPIRATED (N/A), ALL ACCESSORIES

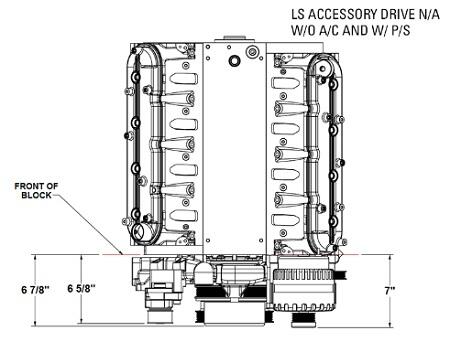

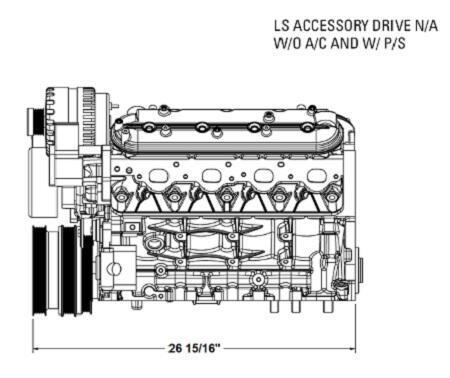

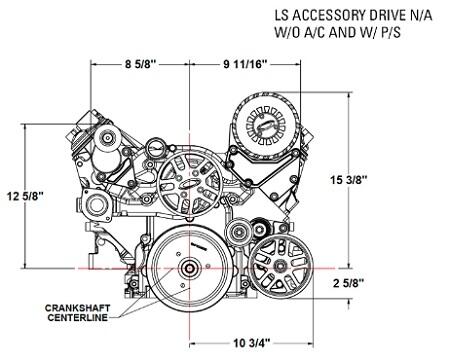

LS ACCESSORY DRIVE NATURALLY ASPIRATED (N/A), WITH POWER STEERING, WITHOUT A/C

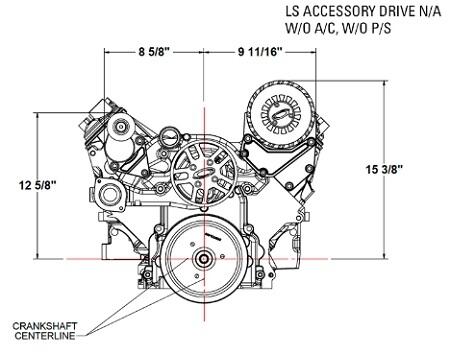

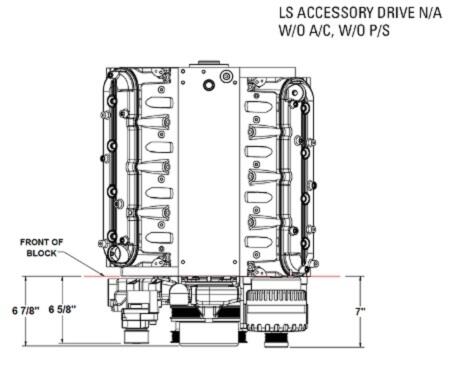

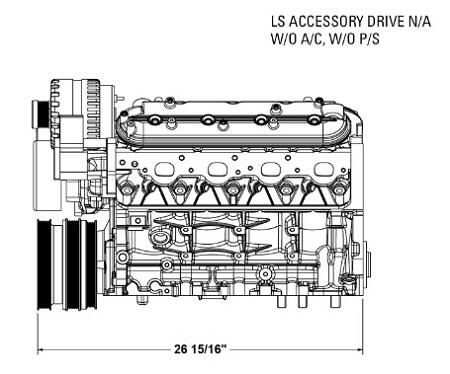

LS ACCESSORY DRIVE NATURALLY ASPIRATED (N/A), WITHOUT A/C, WITHOUT POWER STEERING
Accessories Needed:
- Sanden SD-7B10 A/C compressor 6-rib drive
- 2007-2013 GM Truck Alternator, GM p/n 20881337 (or equivalent)
- GM Type 2 Power Steering pump Tuff Stuff 6175AL (or equivalent) reservoir p/n 6175ARES, remote reservoir required for supercharged applications
- Water pump supplied
Additional Notes:
- Pinning crank pulley is recommended
- Accessory Pulleys included
- Can be ordered without A/C
- Can be ordered without power steering
- Not available for LS7
- Not tall deck compatible
- Not compatible with VVT
