INSTALL NOW, SUPERCHARGE LATER

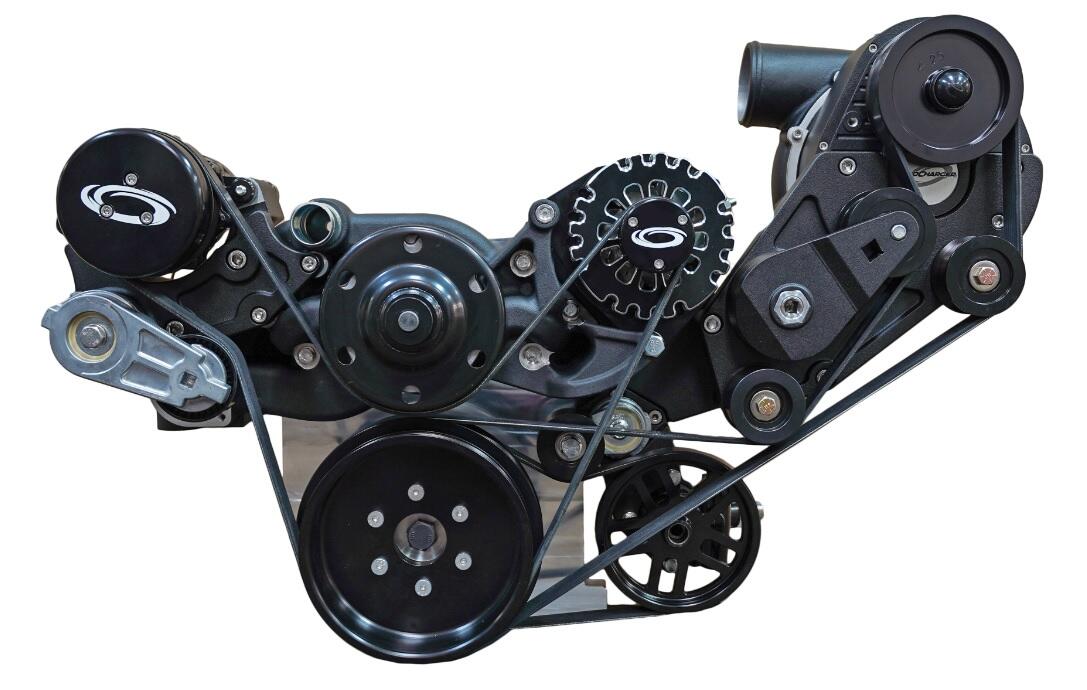

The ProCharger Serpentine Accessory Drive Kit offers the sleek design style you expect from ProCharger, and a unique supercharger bracket design that offers you the convenience of adding the supercharger kit when you are ready. Specifically designed for Chevy LT engines, this kit includes everything you’ll need to fit the accessories you want. The design features our popular 8-rib or 10-rib supercharger pulley that increases grip, reduces stretching and prevents belt slippage when compared to the traditional 6-rib designs. Note: No accessories provided – for a list of recommended accessories, please see our list below.
ORDER JUST WHAT YOU NEED
The ProCharger Accessory Drive is flexible and expandable, which allows you to select the combination of accessories you want to use.
The base kit includes:
– Water Pump & Pulley
– Crank Pulley
– Alternator Bracket & Pulley
– Serpentine Belt & Tensioner
– No accessories provided – see list of needed accessories below
Or you can upgrade to include the following:
– Power Steering Bracket & Pulley
– A/C Bracket and Pulley Cover
– Supercharger Head Unit P-1SC thru F-2
– Intercooler / Bypass Valve / Tubing
– Supercharger Bracket, Tensioner, & Belt
– Finish Options: Satin (standard), Black, Polished
Dimensions
Getting the configuration you need often begins with planning your underhood layout. Choose from one of many, versatile layouts to ensure it works for your setup:
- With Supercharger – Dimensions of the accessory drive with the supercharger bracket.
- Accessory Drive Only – Dimensions of the accessory drive without the supercharger bracket for a naturally-aspirated installation (dimensions coming soon).
- Accessory Drive, no A/C – Dimensions for a naturally-aspirated installation without A/C (dimensions coming soon).

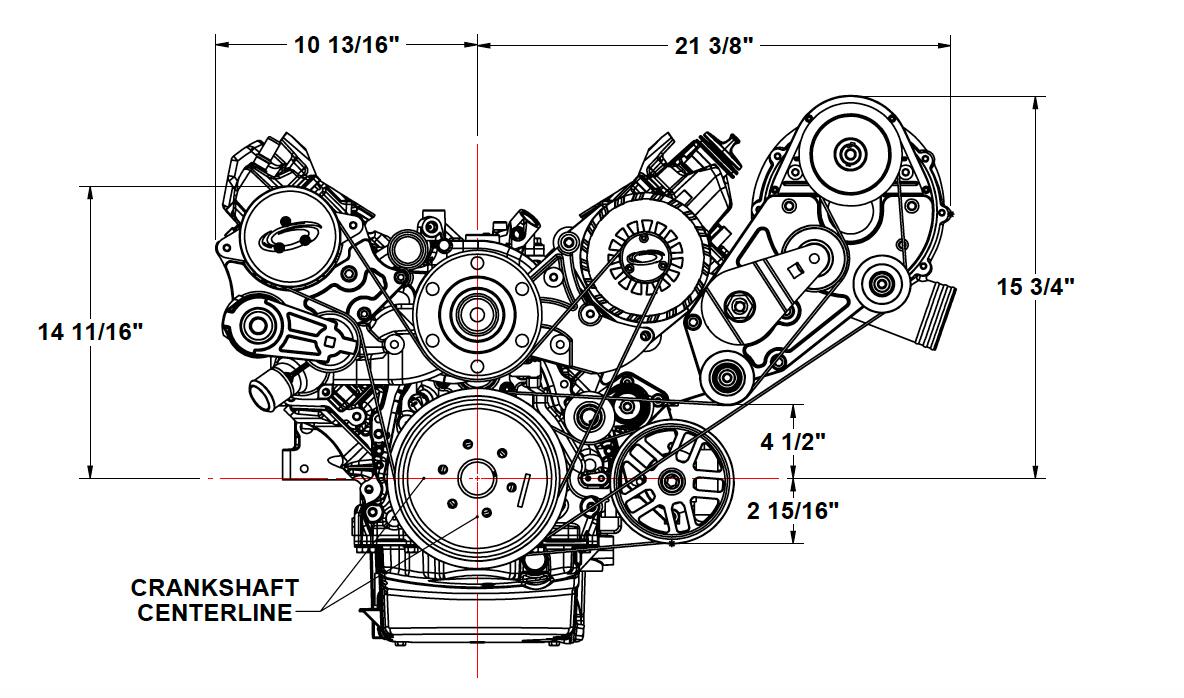

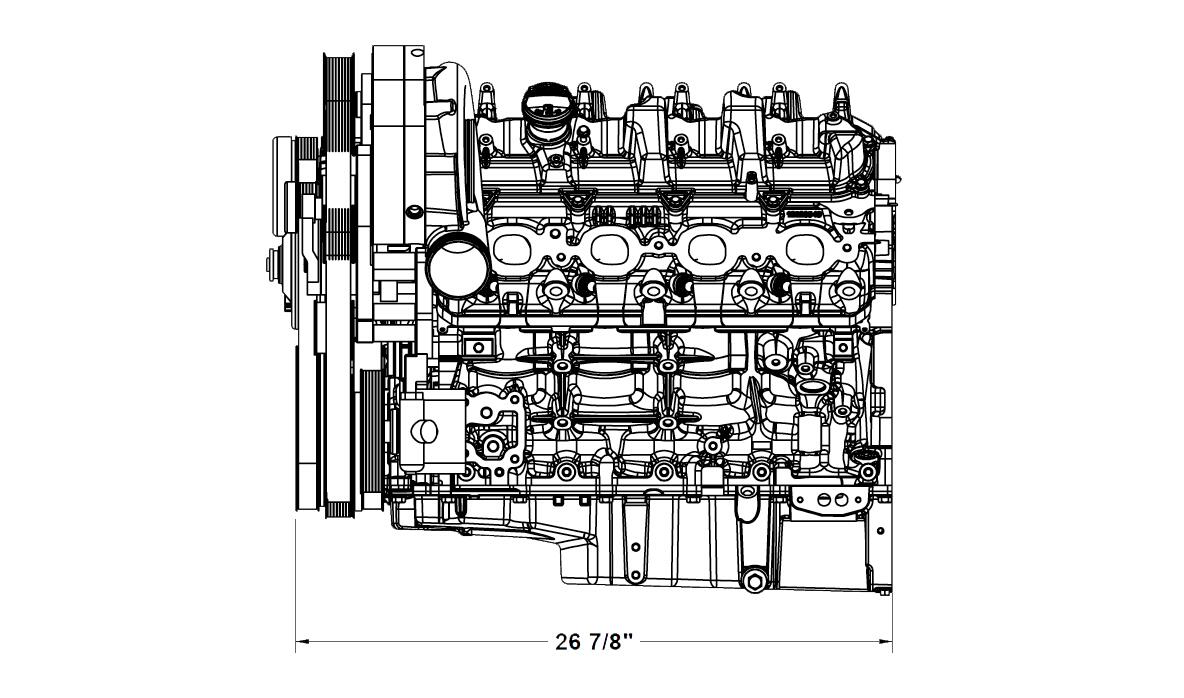

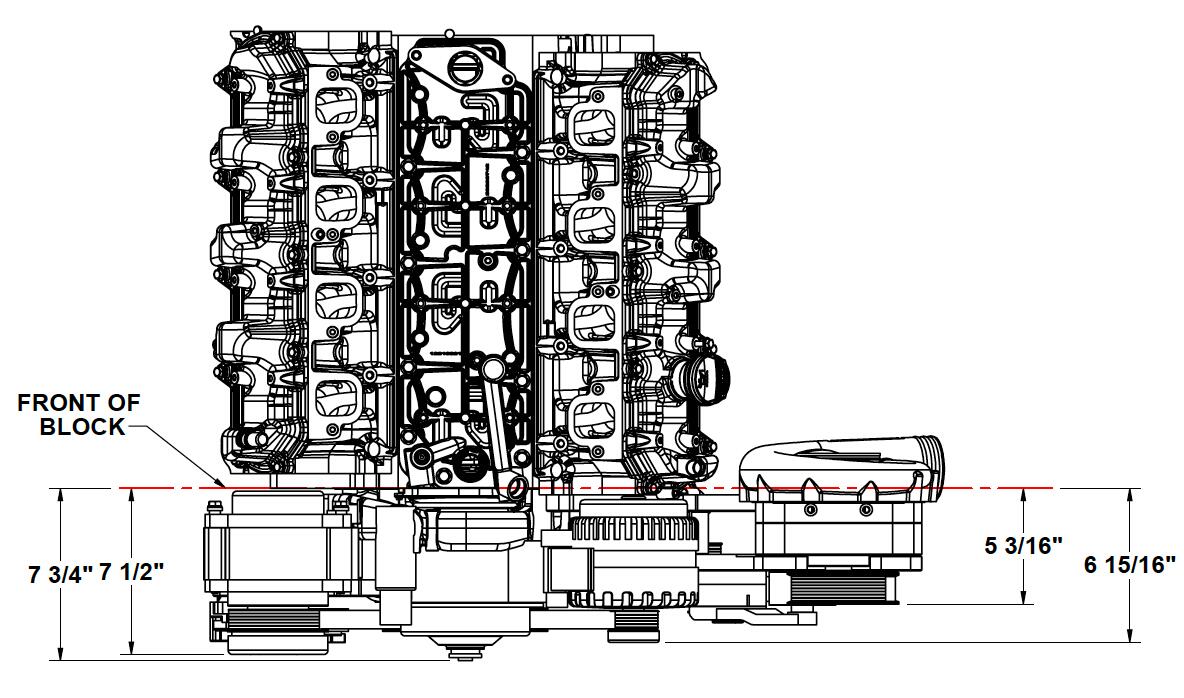

LT ACCESSORY DRIVE, WITH SUPERCHARGER BRACKET
ACCESSORIES NEEDED
- Sanden SD-7B10 A/C compressor 6-rib drive
Alternators that work are: Holley P/N’s: 197-301, 197-302, 197-303, 197-304, Mechman P/N’s: B8206240B, B8206240P, B8206240M, B8206240C
- GM Type 2 Power Steering pump Tuff Stuff 6175AL (or equivalent) reservoir p/n 6175ARES, remote reservoir required for supercharged applications
ADDITIONAL NOTES
- Accessory Pulleys included
- Can be ordered without A/C
- Can be ordered without power steering
- Not tall deck compatible
