ATI 3FRDR-015B Coyote Crank Support Field Upgrade 11-20 Trk I/W
ATI 3FRDR-015B Black Coyote Crank Support Field Upgrade For 2011-20 Truck using Innovators West Balancer Requires a crank pulley for I/W balancer Note: Front sway bar may need to be removed for clearance SUPPORT YOUR LOCAL COYOTE CRANKSHAFT: Is...
Click on More Information link below
The Finer Details
Part Number: ATI 3FRDR-015B
Manufacturer: ATI ProCharger (Accessible Technologies Inc)
Condition: New
Send this to a friend
ATI 3FRDR-015B Coyote Crank Support Field Upgrade 11-20 Trk I/W
- More Information
ATI 3FRDR-015B Black Coyote Crank Support Field Upgrade For 2011-20 Truck using Innovators West Balancer
Requires a crank pulley for I/W balancer
Note: Front sway bar may need to be removed for clearance
SUPPORT YOUR LOCAL COYOTE CRANKSHAFT:
Is the crank support absolutely mandatory? No really, but consider it cheap insurance with the Coyote engine, just like billet oil pump gears. More boost and rpm mean more load on the crank snout—in high boost/high-horsepower applications in a racing situation, the fragility of the stock crank comes into question and the snout has been known to break. And it's not just supercharged cars either—even turbocharged applications have experienced crank failure under high-stress situations. Thankfully for those running a ProCharger, we have a cost effective piece that will help support the crankshaft at elevated HP levels.
ProCharger’s base kit uses a P-1SC-1 supercharger head unit and an air-to-air intercooler set at 8 psi of boost that adds 300+ horsepower to the Coyote. That’s a ton of extra power, but for the power-hungry fans that want even more power than that, there is a Stage II kit with a dedicated drive system, bigger intercooler, and a vast range of supercharger head units from the P-1SC-1 to F-1R and that level of power can highlight the weak point with the Coyote’s crankshaft.
INSTALLATION IS A PIECE OF CAKE!

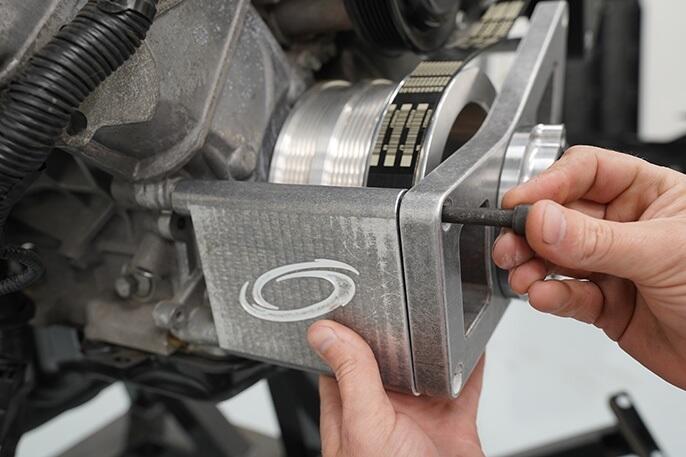

It does require you run an I/W damper and it also requires an 8- or 10-rib Stage 2 drive system. The crank support clears all stock accessories but it doesn’t clear the stock swaybar—if you’re running skinny front drag tires, you don’t need the sway bar anyway. The brackets and Bolt locators are all doweled, so once installed the ProCharger crank snout upgrade solidly holds your crankshaft in place and eliminates the movement that can cause breakage.
The crankshaft mandrel is what supports the crank snout, and is made of 4340 steel.
This idler comes with the crank support assembly and is sandwiched between the support bracket and engine block. The stock idler (not installed in this photo) stays in place and piggy-backs with the new idler, as you can see in the photo below.
