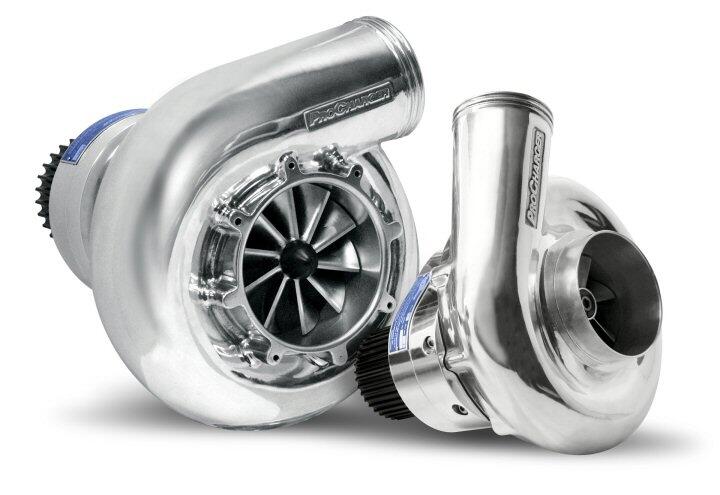

ATI PC314A-102 F-3D-102 ProCharger (satin)

Please remember that the prices on our site are the Procharger Minimum Advertised Prices
Call 260 672-2076

ATI PC314A-102     F-3D-102 ProCharger (satin)

Uses F-3 Bracket

Looking for the most reliable way to make 1,400-1,800HP?  Look no further as ProCharger has the ultimate head unit for dragsters to radial racers and even high HP street cars!  Even though this supercharger was just recently released, it has already had some amazing success on both the racing circuts and those dyno testing for next year's heads-up classes.

Combining the bulletproof F-3 gear case, with a compact 10.5 volute (that many will recognize from the F-1X and F-2 superchargers) we have created the perfect class legal supercharger for the season and beyond. Even for those not racing in class racing, this supercharger is the perfect complement for big power streetcars, boats, and trucks using CrankDrives or cog / Gilmer belt drives.

KEY FEATURES:

- Legendary F-3 gear case
- Compact 10.5" volute
- Class legal 102mm and 106mm trims

The first centrifugal supercharger to power a doorslammer over 200 mph
and into the sixes, F-3 ProChargers are the centrifugal superchargers of
choice among heads-up racers across the continent. These superchargers
utilize a patented high-speed compound bearing design and are completely self-contained
in ProCharger’s proprietary synthetic oil blend. Key components include
precision ground 9310 steel shafts and gears, CNC machined 7075 aluminum billet
impeller, 6061 billet serpentine drive pulley, and 6061 billet transmission case. These
quality parts are made from some of the toughest materials, providing you with
years of trouble-free use. Spinning at an overdrive ratio of 5.63:1 and equipped with
our 12” volute, these units pack a lot of power in a package that can be fitted under
most hoods. The drive systems utilize 8mm or 14mm cog belts along with a rugged
manual belt tensioner and oversized pulleys that provide maximum belt contact
for peak power output. This kit can be ordered with an intercooler, bypass valves
and the tubing needed to boost your engine. F-3 ProChargers utilize advanced
helix shaped impellers, which accommodate a broad range of applications. With
numerous trims available, our racer support staff can help you determine which
F-3 model best suits your specific application.
