BMR RB003 78-87 G-Body Control Arm Reinforcement Braces

BMR RB003  78-87 G-Body Control Arm Reinforcement Braces

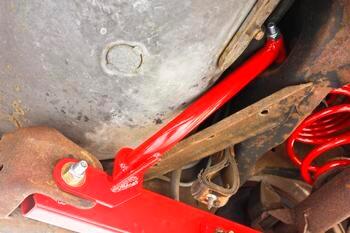

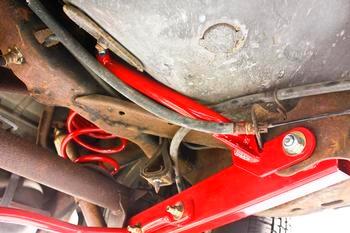

Launching harder, reducing wheel hop, and adding cornering consistency to your 1978-1987 GM G-body is easy with Control Arm Reinforcement Braces from BMR Suspension. Stamped steel sections of the factory frame can deflect under load and change the rearend geometry. BMR’s Control Arm Reinforcement Braces (RB003) attach to the inner upper control arm mounts and lower control arm mounts, adding strength to the areas that are prone to deflection. Manufactured from heavy-duty 1.00-inch diameter, 0.120-inch wall DOM steel tubing, the reinforcement braces are a great way to reduce frame deflection. In addition, the reinforcement braces strengthen the upper control arm frame mounts by tying the upper mounts and lower mounts together.

 BMR Suspension designed its Control Arm Reinforcement Braces to work well in street performance, drag race, and road race applications. The heavy-duty construction eliminates flex, giving you much improved repeatability on the street, starting line, or in the corners. The reinforcement braces provide additional strength to the rear suspension for a more responsive driving experience. BMR's RB003 are designed to strengthen the chassis, while keeping plenty of room mufflers and exhaust systems. This product is the perfect upgrade for the enthusiast looking to improve performance, while maintaining acceptable NVH levels and ride quality. When performance is a must, rely on BMR Suspension!

 BMR Suspension’s Rear Suspension Kits are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is about 2-3 hours. Proudly made in the U.S.A.!

- Fits 1978-1987 GM G-body
- Design with extra clearance for muffler fitment
- Non-adjustable design
- DOM steel tubing
- 1.0-inch diameter, 0.120-inch wall, tubing control arm reinforcement braces
- MIG-welded
- Drastically reduces control arm mount flex
- Control arm reinforcement braces reduce frame deflection
- Designed for street performance, drag race, and road race applications
- Provided with all necessary Grade 10.9 mounting hardware.
- Durable powdercoat finish
- 2-3 hour installation time
- Proudly designed in the U.S.A.
- Proudly made in the U.S.A.

1978 - 1987 Buick Grand National

1978 - 1987 Buick Regal

1978 - 1987 Chevy Malibu

1978 - 1987 Oldsmobile Cutlass

1978 - 1987 Pontiac Grand Prix

RB003H

Description:                                                Control arm reinforcement braces

Application:                                                1978-1987 GM G-Body

Box Dimensions:                                       18” x 4” x 4”

Shipping Weight:                                      6 pounds

Department:                                               Chassis & Suspension

Section:                                                       Suspension Components

Part Type:                                                   Control Arm Reinforcement Braces

Brand:                                                         BMR Suspension

Mounting Style:                                         Bolt-on

Adjustable:                                                 No

Brace Material:                                           Steel

Brace Finish:                                             Black hammertone powdercoated

Bushings Included:                                  No

Hardware Included:                                  Yes

Quantity:                                                     Sold as a pair

RB003R

Description:                                                Control arm reinforcement braces

Application:                                                1978-1987 GM G-Body

Box Dimensions:                                       18” x 4” x 4”

Shipping Weight:                                      6 pounds

Department:                                               Chassis & Suspension

Section:                                                       Suspension Components

Part Type:                                                   Control Arm Reinforcement Braces

Brand:                                                         BMR Suspension

Mounting Style:                                         Bolt-on

Adjustable:                                                 No

Brace Material:                                           Steel

Brace Finish:                                             Red powdercoated

Bushings Included:                                  No

Hardware Included:                                  Yes

Quantity:                                                     Sold as a pair
