BMR RSK036 82-02 F Body On Car Adjustable Rear Suspension Kit

BMR RSK036 82-02 F Body On Car Adjustable Rear Suspension Kit

Part Numbers:

RSK036H

RSK036R

Product Name:

Rear suspension kit, on-car adj, poly/rod end (TCA004, PHR010)

Product Description:

*This kit includes Part Numbers TCA004 and PHR010*

Launching harder, reducing wheel hop, and adding cornering consistency to your 1982-

2002 GM F-body is easy with a Rear Suspension Kit from BMR Suspension. Stock

stamped steel Panhard rod and control arms with soft rubber bushings deflect under

load and absorb power instead of transferring it to the tires. BMR’s polyurethane, on-car

adjustable Rear Suspension Kit (RSK036) consists of a Panhard rod and lower control

arms for 3rd and 4th-gen F-bodies. Manufactured from heavy-duty 1 1/4-inch diameter,

0.120-inch wall steel tubing, the on-car adjustable lower control arms provide all the

strength and adjustability you’ll need for any performance application. The on-car

adjustable Panhard rod is manufactured from heavy-duty 1¼-inch, 0.120-inch wall DOM

steel tubing. On one side you get greasable, 95-durometer polyurethane bushings add a

solid, more responsive feel over the stock rubber bushings. BMR’s bushings are

internally fluted, which keeps grease in the bushing, even under heavy load. These

flutes also direct grease to the outer edge of the bushing, keeping the thrust surface

lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the

bushings. On the other side, a heavy-duty Teflon-lines rod end from Viking Performance

solidly mounts the arm, cutting the amount of bushing deflection in half. The center-

mounted adjuster uses both left and right hand threads, making adjustments simple,

with just basic hand tools.

BMR Suspension designed its Rear Suspension Kits to work well in street performance,

drag race, and road race applications. The heavy-duty construction of the lower control

arms and Panhard rod eliminate flex, giving you much improved repeatability on the

street, starting line, or in the corners. BMR’s polyurethane bushings are designed to be

compliant enough to give you a comfortable ride and absorb NVH, while remaining firm

enough to stand up to high loads of any performance environment. The bushings easily

handle the high compression loads of aggressive launches and hard acceleration, yet

offer plenty of articulation for great handling. These are the perfect upgrade for the

enthusiast looking to improve performance, while maintaining acceptable NVH levels

and ride quality. When performance is a must, rely on BMR Suspension!

BMR Suspension’s Rear Suspension Kits are available in black hammertone and red

powdercoat for long-lasting good looks. Installation time is about 3-4 hours. Proudly

made in the U.S.A.!

Control arm hardware kit RH005 (includes upper and lower control arm hardware –

Highly Recommended) is also available.

Features:

- Fits 1982-2002 GM F-bodies

- On-car adjustable lower control arms

- On-car adjustable Panhard rod

- Polyurethane bushings/rod end combo reduced deflection

- 95-durometer internally fluted polyurethane greasable bushings

- Zinc-coated inner sleeves

- DOM steel tubing

- 1.250-inch diameter, 0.120-inch wall tubing lower control arms

- 1.250-inch diameter, 0.120-inch wall tubing Panhard rod

- Dramatically reduces control arm flex

- Greatly reduces bushing deflection

- Improved Performance with acceptable NVH levels

- Designed for street performance, drag race, and road race applications

- Durable powdercoat finish

- 3-4 hour installation time

- Proudly designed in the U.S.A.

- Proudly made in the U.S.A.

RSK036H

Rear suspension kit, on-car adj, poly/rod end (TCA004, PHR010)

Application : 1993-2002 4th Gen F-Body

Application : 1982-1992 3rd Gen F-Body

Box Dimensions: 51” x 6” x 6”

Shipping Weight: 17 pounds

Department: Chassis & Suspension

Section: Suspension Components

Part Type: Rear Suspension Packages

Brand: BMR Suspension

Third Member Included: No

Axle Shafts Included: No

Front Upper A-Arms Included: No

Front Lower A-Arms Included: No

Rear Shocks/Struts Included: No

Coil-Over Springs Included: No

Suspension Package Finish: Black hammertone powdercoated

Bushings Included: Yes

Bushing Material: Polyurethane / Steel rod end

Bushing Color: Red / Steel

Panhard Bar Included: Yes

Adjustable Panhard Bar Included: Yes

Rear Upper Control Arms Included: No

Adjustable Rear Upper Control Arms Included: No

Rear Upper Control Arm Type: N/A

Rear Lower Control Arms Included: Yes

Adjustable Rear Lower Control Arms Included: Yes

Rear Lower Control Arm Type: On-car adjustable tubular

Rear Control Arm Mount Braces Included: No

Rear Control Arm Hardware Included: No

Rotors Included: No

Calipers Included: No

Quantity: Sold as a kit.

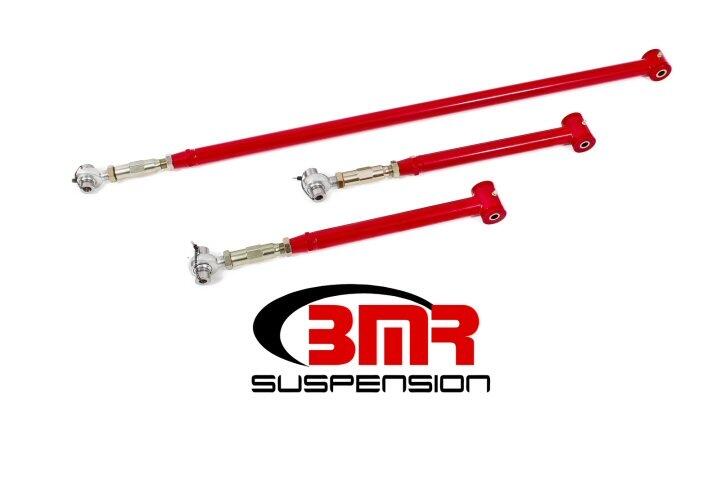

RSK036R

Rear suspension kit, on-car adj, poly/rod end (TCA004, PHR010)

Application : 1993-2002 4th Gen F-Body

Application : 1982-1992 3rd Gen F-Body

Box Dimensions: 51” x 6” x 6”

Shipping Weight: 17 pounds

Department: Chassis & Suspension

Section: Suspension Components

Part Type: Rear Suspension Packages

Brand: BMR Suspension

Third Member Included: No

Axle Shafts Included: No

Front Upper A-Arms Included: No

Front Lower A-Arms Included: No

Rear Shocks/Struts Included: No

Coil-Over Springs Included: No

Suspension Package Finish: Red powdercoated

Bushings Included: Yes

Bushing Material: Polyurethane / Steel rod end

Bushing Color: Red / Steel

Panhard Bar Included: Yes

Adjustable Panhard Bar Included: Yes

Rear Upper Control Arms Included: No

Adjustable Rear Upper Control Arms Included: No

Rear Upper Control Arm Type: N/A

Rear Lower Control Arms Included: Yes

Adjustable Rear Lower Control Arms Included: Yes

Rear Lower Control Arm Type: On-car adjustable tubular

Rear Control Arm Mount Braces Included: No

Rear Control Arm Hardware Included: No

Rotors Included: No

Calipers Included: No

Quantity: Sold as a kit.
